Specification of CMYK Printed Round Metal Coffee Tin：
Product name | CMYK Printed Round Metal Coffee Tin |
Standard | AISI, ASTM, BS, DIN, GB, JIS (GB/T2520, JIS G3303, ASTM A623M, EN10202) |
Material | Tinplate sheet/Tinplate coil (MR SPCC) |
Steel type | MR grade for metal packaging |
Tin coating | 1.1~11.2g/m2 (1.1/1.1, 2.2/2.2, 2.8/2.8, 5.6/5.6, 8.4/8.4, 11.2/11.2) |
Temper Grade | T3,T4 |
Annealing | BA,CA |
Passivation | 311GR |
Oiling | DOS |
Thickness | 0.18~0.22mm (Tolerance: +/-0.01mm) |
width | 508~960mm (Tolerance: 0~3mm) |
length | 712~1145mm |
Internal coating | Gold lacquer+Alumilized paste+transparency lacquer |
Outside printing | White coation+CMYK Printing+Varnish |
Application | For any packing Metal Tin,Metal Box, Can, Bucket, etc(Food, oil,coffee, medicines, cosmetics, perfume,toys, chemicals, etc.) |
MOQ | 2 tons for each size |
Printing capacity | 4000 tons per Month |
Port of Loading | Foshan/Guangzhou/Shenzhen |
Lead time | 15~25 days after receipt of 30% T/T deposit. |
Standard of tinplate temper:
Standard Material | Q/BQB 455-2009 | JIS G3315-2008 | ASTM A623M-08 | EM 10202:1989 | EN 1020:2001 | ISO 11950:1995 |
Single Reduce | - | T-1 | T-1(49) | T50 | TS230 | TH50+CE |
T-1.5 | - | - | - | - | - | |
T-2 | T-2 | T-2(T53) | T52 | TS245 | TH52+CE | |
T-2.5 | T-2.5 | - | - | TS260 | TH55+CE | |
T-3 | T-3 | T-3(T57) | T57 | TS275 | TH57+CE | |
T-3.5 | - | - | - | TS290 | - | |
T-4 | T-4 | T-4(T61) | T61 | TH415 | TH61+CE | |
T-5 | T-5 | T-5(T65) | T65 | TH435 | TH65+CE | |
Double Reduce | DR-7M | - | DR-7.5 | - | TH520 | - |
DR-8 | LR-8 | DR-8 | DR550 | TH550 | TH550+CE | |
DR-8M | - | DR-8.5 | - | TH580 | TH580+CE | |
DR-9 | DR-9 | DR-9 | DR620 | TH620 | TH620+CE | |
DR-9M | DR-9M | DR-9.5 | DR-660 | - | TH660+CE | |
DR-10 | DR-10 | - | - | - | TH690+CE |

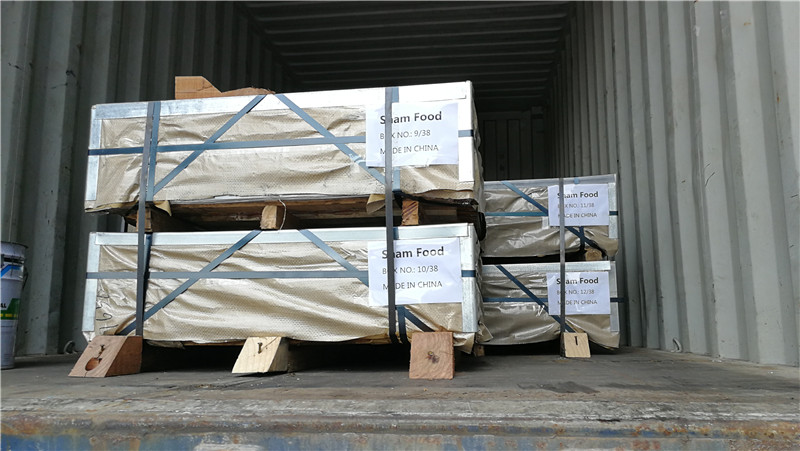

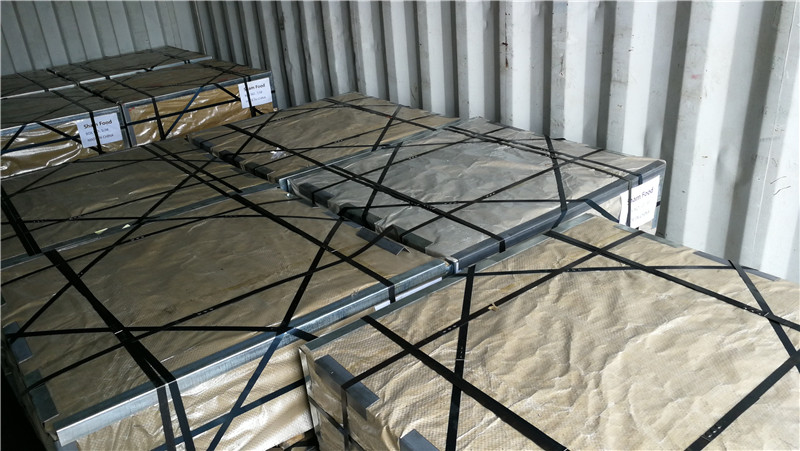

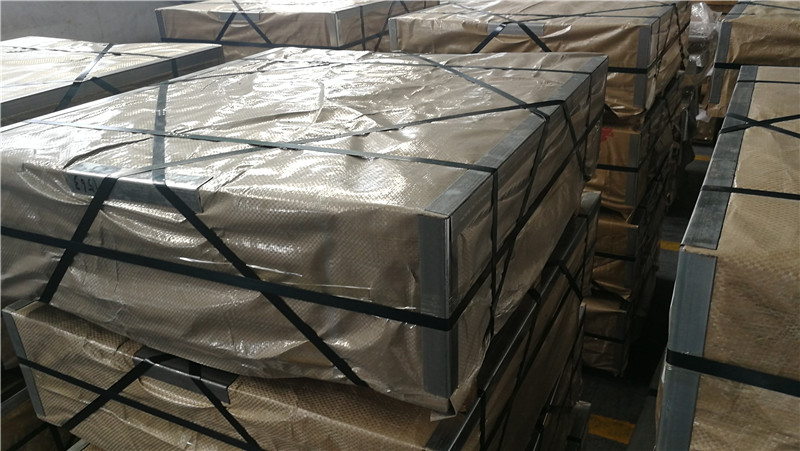

Packing printing tinplate:
For tinplate coil:Anti-rust paper+Metal cover+Corner cap protected+Wood skids.
For tinplate sheet: Thin plastic film+Anti-rust paper+Metal cover+Metal corner cap protected+Binding strap+Pallet.
Loading by 20 feet container: 20~25 tons
The process of printing CMYK Metal:
The thickness of the coating film is usually only A few microns thick, it is difficult to completely cover the tinplate surface. Therefore, in order to prevent the corrosion phenomenon at the defects of the organic coating film, tinplate is required to have corrosion resistance, the oxide film on the surface thereof provides coating film compactness, and the surface oil layer protects the coating film leveling property. Coatings are classified as oily, phenolic, epoxy, polyester, ethylene, acrylic, amino, etc. by resin, and are divided into inner coating, outer coating, color coating, overcoat coating, special coating, etc. according to use. Iron printing ink is different from limb printing ink, it must have heat resistance, processability, dryness, high temperature sterilization resistance and transparency.
The coating is determined by the product. For example, the metal packaging box of coffee tin and moon cake box, in order to prevent the rusting of the curled iron during processing. A transparent golden yellow paint is required for rust prevention and aesthetics. At the same time, when selecting the inner coating, the hygienic requirements of the contents must be considered. The inner coating must have corrosion resistance, good adhesion, flexibility, non-toxic and tasteless, and meet food hygiene and safety requirements. In addition, it should also meet the processability of canning, such as the heat of high-frequency resistance welding, local high-temperature heating of internal paint and high-pressure cooking after canning without discoloration or loss of light.
Main markets:
Our products are mainly exported to USA, Egypt, UK, Russia, Germany, Myanmar, Canada, Malaysia, Argentina, Peru, Colombia, Saudi Arabia, UAE, and so on
