As a common spray container in life, aerosol cans are widely used in the packaging of various products, such as personal care, cosmetics, detergents and food sprays, due to their convenient and easy-to-operate features. The structural design of aerosol cans seems simple, but in fact the internal structure is extremely sophisticated, especially the top part, which involves multiple important components that work together to ensure the sealing, spraying and safety of the contents.
Therefore, understanding the composition structure of the top of aerosol cans is very important for understanding its operating principle and safe use. This article will analyze the professional name of the top of aerosol cans and its parts in detail, and answer a series of questions about the top of aerosol cans.
What is the official name of the top of aerosol cans?
1. What is the professional term for the top structure?

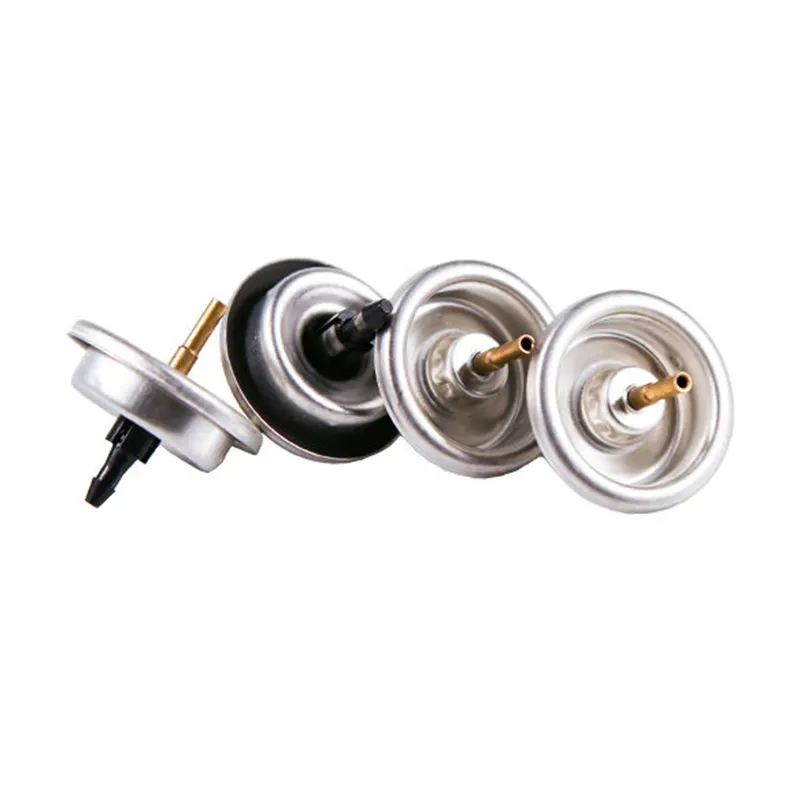

The top of aerosol cans is called the "valve system", which is one of the most important parts of the entire aerosol cans. The valve system not only plays a sealing role, but also directly determines the way and dosage of the aerosol cans spraying contents. The construction of the valve system must be extremely precise to ensure that the pressure and contents in the can can be released stably and controllably when used.
The valve system is located at the top of the aerosol cans, and is usually designed to include multiple parts such as the valve body, push-on cap, and nozzle. It not only affects the user experience of aerosol cans, but is also closely related to the safety of the product. If there is a problem with the valve system, it may cause leakage of the contents of the aerosol cans, uneven spraying, and even safety hazards.
2. What is the role of the valve system in aerosol cans?
The primary function of the valve system is to safely isolate the contents inside the aerosol cans from the outside world, while being able to release the contents through simple operations. The valve system is also responsible for controlling the spraying method, such as the dosage per press, the degree of spray diffusion, etc. Different types of aerosol cans have valve systems that are adjusted according to the characteristics of specific contents to achieve the best spray effect and dosage control.
What are the core components of the valve system?
1. Valve body and sealing ring: How to achieve the sealing of the contents?
The valve body is the core component of the valve system, usually made of metal or plastic, directly connected to the tank and supporting the entire valve system. The valve body has a fine internal design, including liquid channels, gas channels and other parts to control the flow of contents. The sealing ring is wrapped around the valve body to prevent gas or liquid leakage.
The sealing ring is usually made of rubber or chemical-resistant materials, and its quality directly affects the sealing effect of aerosol cans. If the sealing ring fails, the contents and propellant may leak to the outside, affecting the normal use of aerosol cans and even causing safety hazards. Therefore, in the production process of aerosol cans, the material and installation accuracy of the sealing ring are crucial.
2. Press cap and nozzle: How to control the spraying method?
The press cap is located at the top of the aerosol can. Users can trigger the valve system to spray the contents by pressing the press cap. The design of the press cap takes ergonomics into consideration and is usually arc-shaped, which is convenient for finger force. In addition, the press cap is also connected to the spray mechanism inside the valve to ensure that the contents can be sprayed evenly when pressed.
The nozzle is a part of the press cap, which determines the spraying form of the contents, such as atomization, line spray or dot spray. The design of the nozzle will be adjusted according to the physical characteristics of the contents of the aerosol cans. For example, products such as perfumes require a delicate atomization effect, while products such as detergents may require a concentrated spray effect. The small hole design of the nozzle determines the thickness and range of the aerosol cans spray, which is crucial to the user experience.
3. Valve core and spring: How to control the force of the spray?
The valve core is located under the push-on cap and is one of the smallest but indispensable components in the entire valve system. The function of the valve core is to regulate the flow of the contents so that the aerosol cans can control the dosage of the spray. The valve core is connected to the spring, which is pressed to trigger the spring compression and then release the pressure to push the contents out.
The spring is a key component for controlling the spray force. When the push-on cap is released, the spring returns to its original position and closes the valve system, thereby achieving flow interruption. This mechanism ensures that users can get a uniform spray effect in each use while avoiding waste of contents.
How does the valve system of aerosol cans ensure safe use?
1. What is the function of the protective ring?
The protective ring is a protective measure to prevent accidental pressing of the push-on cap. On some aerosol cans, such as high-pressure sprays and insecticides, a plastic protective ring is specially designed to fit over the bottom of the push-on cap. The main function of the protective ring is to prevent the contents from being ejected due to accidental pressing, which is particularly important for aerosol cans stored in crowded spaces or during transportation.
When the protective ring is installed, the push-on cap cannot be fully pressed, and the user needs to remove the protective ring before using the aerosol can to ensure the normal ejection of the contents. The protective ring improves the safety of aerosol cans to a certain extent, especially for home users, and can reduce the risk of accidental pressing.
2. Can the pressure relief valve prevent the can from over-expanding?
Some aerosol cans may experience increased internal pressure in special environments, such as when exposed to high temperatures. To prevent the aerosol cans from being over-pressurized and ruptured, some aerosol cans are designed with a pressure relief valve. The pressure relief valve can automatically release part of the gas when the pressure in the tank is too high, maintaining the pressure in the tank within a safe range.
The pressure relief valve is generally built into the valve system and is not directly exposed to the outside, but its role cannot be ignored in an emergency. It can effectively avoid the risk of tank explosion and improve the safety of aerosol cans.
Do different products use different types of valve systems?
1. What are the differences in valve design between personal care products and cleaning products?
Personal care aerosol cans, such as hair spray and perfume spray, usually have high requirements for spraying effect and pay attention to delicate atomization effect, so the valve system used will be more precise. To achieve this effect, the nozzle orifice of this type of aerosol cans is extremely fine, and high-quality springs and precision valve cores may be used to ensure that the contents are sprayed evenly each time they are pressed.
For aerosol cans such as cleaning products and disinfectant sprays, the spray range and force are more important, so different nozzles are used to allow the contents to be sprayed out in a concentrated and powerful manner to cover a larger area. In addition, the propellants of cleaning products may be more active, so the valve system of such products is usually designed to be more robust and able to withstand higher pressures.
2. What are the special requirements for the valve system of food aerosol cans?
Food aerosol cans, such as cooking sprays, are usually required to be non-toxic and non-hazardous, and need to be food-safe. The main difference between its valve system and other products is that the materials used must meet food contact standards and will not chemically react with the contents. In addition, the nozzle design is also important to ensure that the contents are sprayed evenly and quantitatively without wasting too much grease or other food ingredients.
